I'll show you CSS3 Grid Layout, and I do, in fact, use it in those slides. Unfortunately, it is not widely supported.
Make sure your prowser supports it. For example, in Chrome you can enable it through the "experimental Web Platform features" flag in
chrome://flags
CSS Grid Layout
Tomek Wytrębowicz
@tomalecpl
tomalec
the only grid framework you need to know

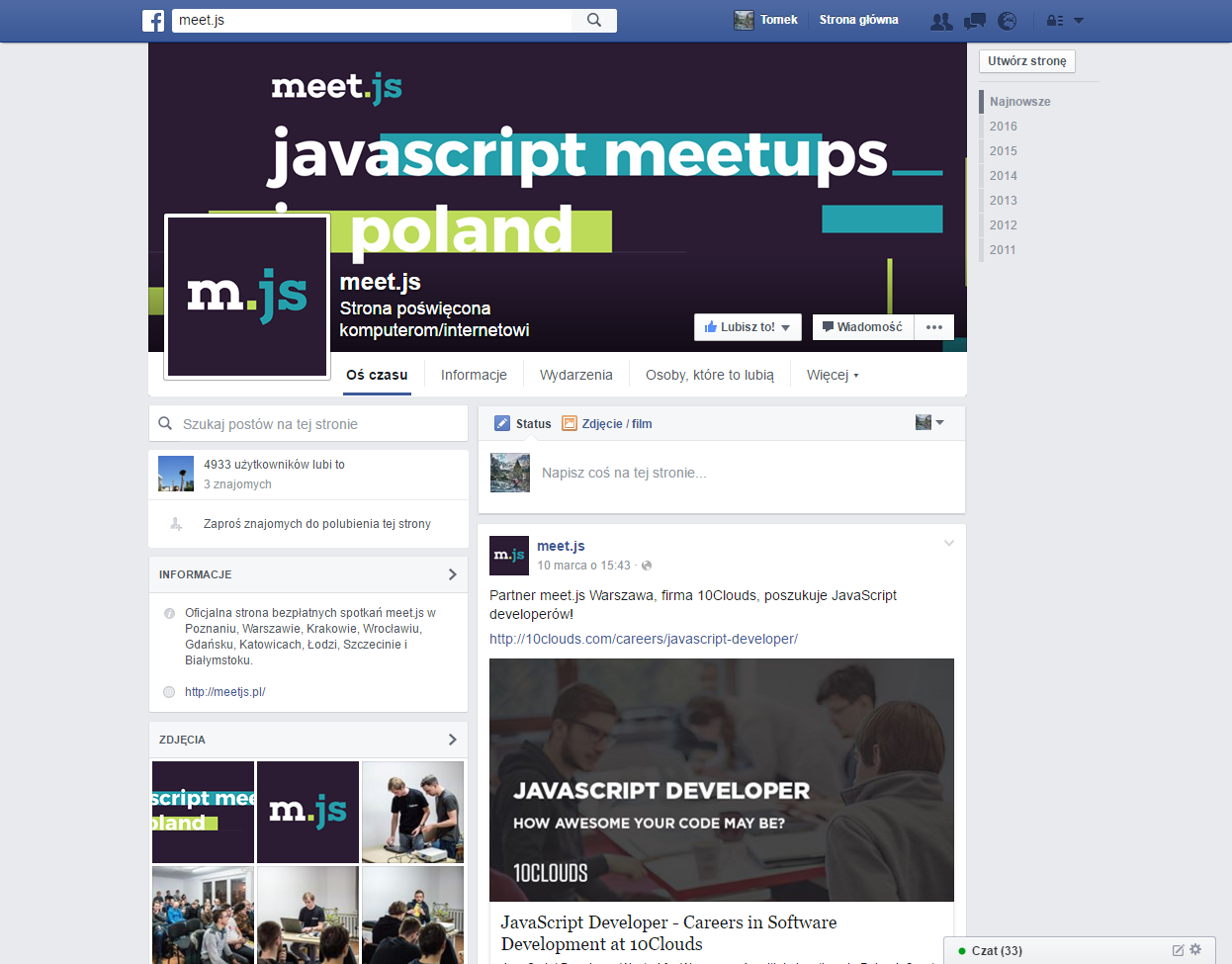

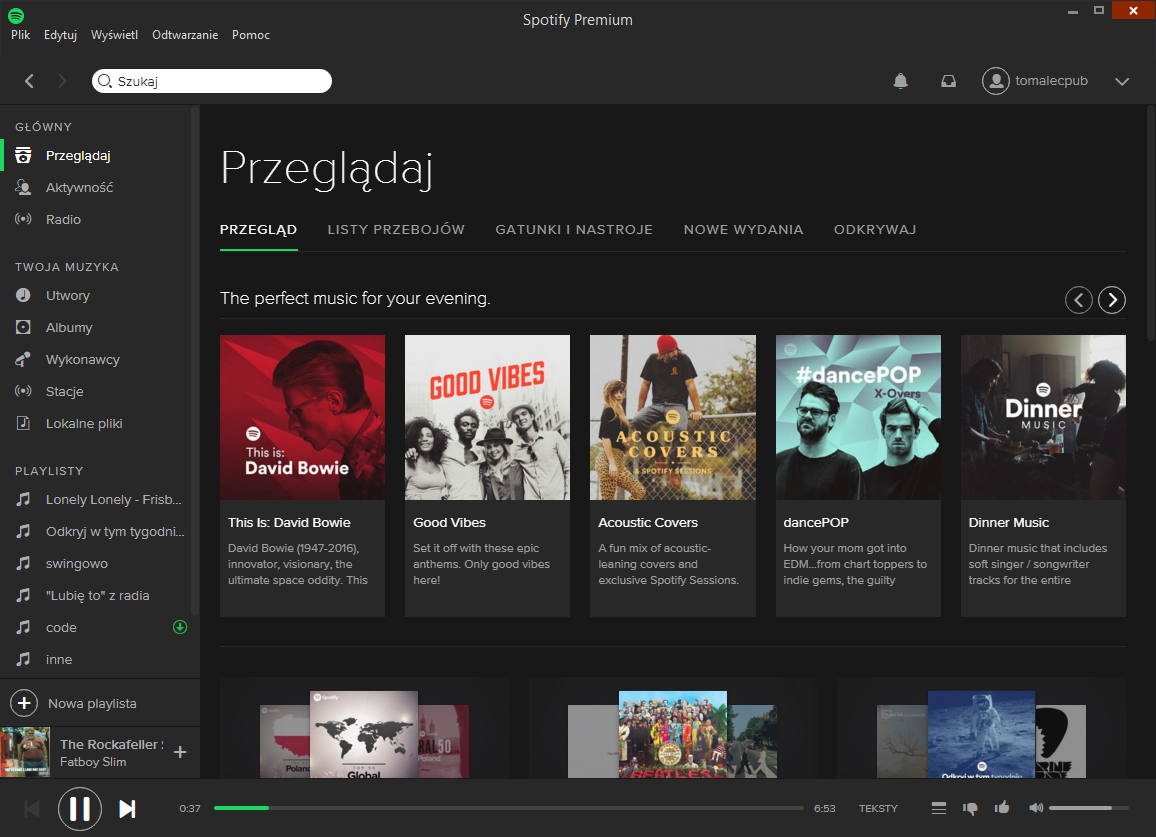

live-coding video: youtu.be/8xQWMf0NH_sThe Grid

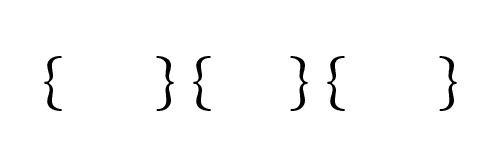

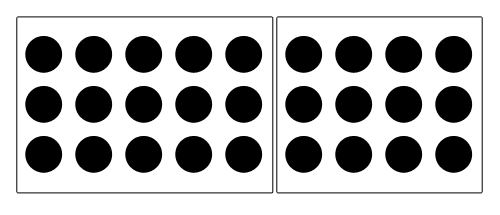

Gestalt
That's the way we perceive visual information
How we can do it?

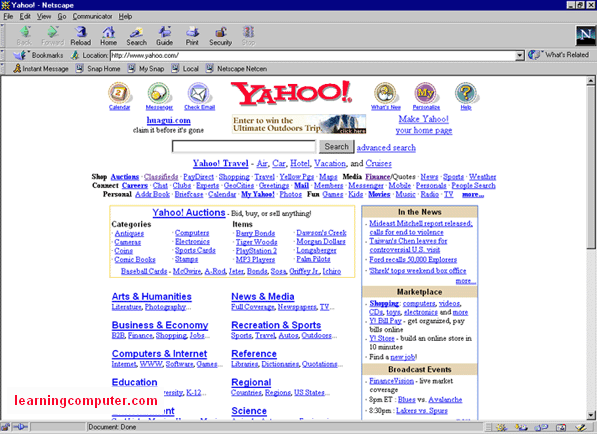

<table>
- conceptually similar
- works!
- mixes content with styles
- layout is not a tabular data
- spacer gifs & co.
- table layout may be unpredictable
Monthy Pyton, video from youtu.be/YgYEuJ5u1K0
position: absolute;
- concerns separated! ..almost
- div-soup 🍜
- hard to achieve
- taking responsibility for document flow
- fixed position are not very responsive
float: left | right;
- great to float an image
- job security
- hard to achieve
- hard to maintain
- clear fixes hell
- div-soup 🍜
display: table;
display: table;
- concerns separated
- cheating ...
- all problems related to <table>, except separation
- no row-/colspans
Monthy Pyton, video from youtu.be/YgYEuJ5u1K0
display: flex;
- cool & fresh
- easy
- meaningful
- responsive
- cross-browser support
- single dimension
- requires nesting 🍜
- no row-/colspans
CSS frameworks
- +∞ to choose from
- not your problem
- cheating...
same hacks = same problems - yet another class langauge to learn
- maintenance
- vendor locking
- mixability
- overhead
What is the right way?
#container {
display:
grid;
}
It works!
CSS Grid Layout
https://www.w3.org/TR/css-grid-1/
- no div-soup
- semantic HTML
- meaningful CSS
- responsive
- easy to maintain
- easy to replace
- no vendor locking
- no dependencies
- no glue code
The right way
<div class="container">
<div>Logo</div>
<div>Header</div>
<div>Nav</div>
<div>Main content</div>
</div>
Non-live coding hint
.container{
display: grid;
grid-template-columns: 4em 1fr;
grid-template-rows: 2em 1fr;
}CSS is finally aware of 2D layout concepts!
Example
Grid Lines
Grid Tracks
Rows
Grid Tracks
Columns
Grid Cells
Grid Areas
The code!
Grid container
<div class="container">
<div>A</div>
<div>B</div>
</div>
<div class="smth"></div>
Non-live coding hint
.container {
display: inline-grid; /* grid */
border: 3px solid #FFC;
}
.smth{
display: inline-block;
}Track sizing
<div class="container">
<div class="a">A</div>
<div class="b">B</div>
<div class="c">C</div>
<div class="d">D</div>
<div class="e">E</div>
</div>
Non-live coding hint
.container{
display: grid;
grid-template-columns: minmax(150px, 1fr) 20% minmax(min-content, 2fr);/* px/em/%/.. auto, fr, minmax()*/
grid-template-rows: auto 4em;
/* direction: rtl; */
/* grid-template: 2em 1fr / 4em 1fr; */
/* grid: 2em 1fr / 4em 1fr; */
}Items placement
<div class="container">
<div class="a">A</div>
<div class="b">B</div>
<div class="c">C</div>
<div class="d">D</div>
<div class="e">E</div>
</div>
Non-live coding hint
.a{ order: 1;} /* 1 is grater than nothing */
.c{ order: 2;}
.b{ grid-column: 3;}
.c{ grid-column: 1 / span 2;}
.d{ grid-row: 1/3; /* grid lines not tracks */}
Numbers, numbers..
Do I really have to know the math?!
Named grid lines
<div class="container">
<div class="a">A</div>
<div class="b">B</div>
<div class="c">C</div>
<div class="d">D</div>
<div class="e">E</div>
</div>
Non-live coding hint
.container{
display: grid;
grid-template-columns: [left] 4em [center] 1fr [right prawo];
grid-template-rows: [top] 1.5em [hero] 3em [content] 1fr [bottom];
}
.a{
grid-column: left / right;
}
.b{
grid-column: center / 3;
grid-row: 2;
}
.c{
grid-row: 2 / content;
}Named areas
<div class="container">
<header>Header</header>
<nav>Nav</nav>
<div>Content</div>
<footer>Footer</footer>
</div>
Non-live coding hint
.container {
display: grid;
grid: 1.5em 1fr / 5em 1fr; /* auto in 3rd row is comes as default */
grid-template-areas: "head head"
"nav main"
"foot foot";
}
.container header{
grid-area: head;
}
.container nav{
grid-area: nav;
}
.container div{
grid-area: main;
}
.container footer{
grid-area: foot;
}Non-live coding hint
@media (max-width: 500px) {
.container {
grid-template-areas: "head"
"nav"
"subnav"
"main"
"foot";
grid-template-columns: 1fr;
grid-template-rows: 3em auto auto minmax(2em, 1fr) auto;
}
}Grid framework?
Write your own
Non-live coding hint
.grid {
display: grid;
grid-template-columns: repeat(12, 1fr);
/* grid-template-columns: 1fr 1fr ....; */
}
/* .grid > *{
grid-column: span 2;
}*/Can I use it?
Production
source: caniuse.com/#feat=css-grid
Development
 IE/Edge |
Prefixed with -ms |
Old spec/syntax, but quite stable |
 Chromium |
⚑ behind the flagexperimental-web-platform-features |
Latest spec |
 Firefox |
⚑ behind the flaglayout.css.grid.enabled |
|
 Webkit |
Prefixed with -webkit |
Enabled in Webkit nightlies |
| Polyfill | github.com/FremyCompany/css-grid-polyfill | |
Learn and contribute
Place to start fiddling with it
Igalia's demos and examples - igalia.github.io/css-grid-layout/
Grid by example - gridbyexample.com/
Make the awesome happen!
Read and raport bugs in spec - w3.org/TR/css-grid-1/
Write browser tests - github.com/w3c/csswg-test
Take part in workshops - fantasai.inkedblade.net/style/events/grid-workshop
